Oxi.X DF – Thermal incinerator for critical substances

In order to dispose of critical exhaust gases and liquid residues safely and completely in the face of increasingly stringent thresholds, systems based on a combination of different technologies are needed. The Oxi.X DF incinerator for exhaust gases and liquid residues is the ideal solution in these situations. This type of system can also dispose of explosive exhaust gases without problem. It is based on the thermal process.

REQUEST A QUOTE

At a glance
Functionality
Applications
Technical specifications
Construction

Oxi.X DF benefits

Adaptable to a wide range of pollutants
No restrictions on the type or quantity of pollutants
Disposal of explosive gases
Heat recovery using different types of waste heat systems

Operating principle Oxi.X DF

Lances are used to bring the exhaust air into the Oxi.X DF system. It then moves toward the back of the system where the burner flame is located. There the polluted air is heated by the burner designed by Dürr. Above a certain temperature, which varies depending on the concentration of pollutants in the exhaust air, the pollutants are oxidized.

Another important parameter is the dwell time of the air mixture in the combustion chamber, which can be selected to meet individual requirements.

The clean air can be reused in different ways or undergo further purification processes. A downstream steam boiler, thermal oil boiler, or air-to-air heat exchanger can be used to recover the heat from the air.

Manufacturing processes often produce different types of pollutants in exhaust air. This is why thermal treatment processes are sometimes not an adequate solution on their own. In these cases additional Air Pollution Control Systems, such as scrubbers, quenchers, and/or hose filters, can be installed downstream of the Oxi.X DF system. An Cat.X CR system is another option to be installed downstream.

Application areas Oxi.X DF

Oxi.X DF incinerators for exhaust gases and fluid residues are primarily used in the chemical, petrochemical, pharmaceutical, recycling, and waste management industries. This type of system is ideal for applications where heavily polluted and corrosive gases need to be purified. These systems can also be found in the production of graphite anodes, carbon fiber, rubber and latex, ceramics, and semiconductors.

Chemical Industry
Petrochemical Industry
Pharmaceutical Industry
Recycling & Waste Industry
Carbon fiber
Rubber & Latex
Ceramics
Semiconductors

Technical specifications Oxi.X DF

Oxi.X DF Air Pollution Control Systems allow the pollutants or contamination produced during manufacturing processes to be converted. Depending on the application, exhaust air volume flows from 100 to 160,000 Nm³/h can be treated.

All or some of the exhaust air typically contains the substances listed below:

Exhaust gases with concentrations of pollutants in the explosive range

Inert exhaust gases and gases with an oxygen content of 0 to 21% by volume (higher oxygen contents are also possible)

Exhaust gases containing halogens, nitrogen, and sulfur, including toxic and carcinogenic substances

Liquid residues and waste solvents, wastewater that is difficult to purify and contains salts and/or substances that bind salts, with organic and inorganic substances that have been dissolved or emulsified

Construction Oxi.X DF

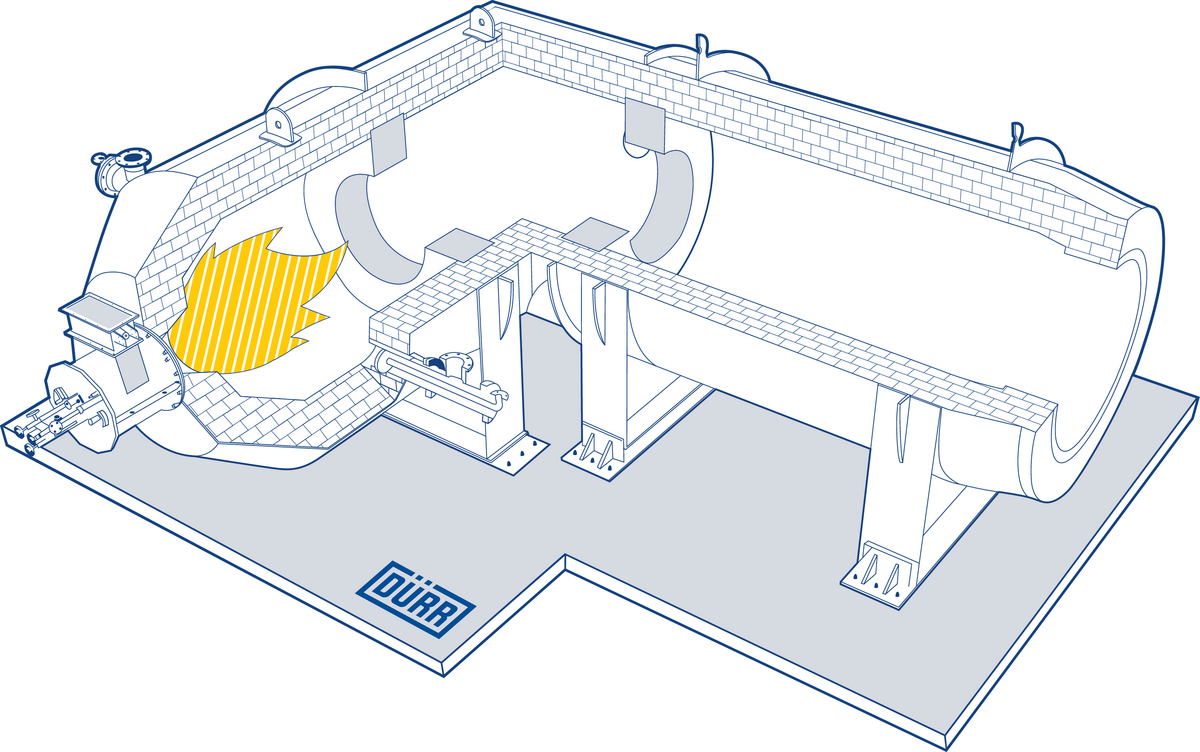

The Oxi.X DF thermal Air pollution Control System consists of a brick- or fiber-lined combustion chamber that meets a wide variety of different requirements. The combustion chamber can be vertical or horizontal and straight, L-shaped, or U-shaped. On the front is a gas, oil, or multifuel burner that can be adapted to suit users' needs.

The Oxi.X DF enclosed ground flare is a modular standard version of the Oxi.X DF. It consists of a burner system in a standardized combustion chamber which is directly connected to a chimney. The Oxi.X GF has a thermal output ranging from 300 kW to 30,000 kW and comes in seven different sizes. It can treat exhaust air with low levels of pollutants and highly concentrated process exhaust gases. The modular design of the Oxi.X DF enclosed ground flare is a particularly impressive feature. It allows projects to be completed in the shortest possible time, from design, manufacturing, and assembly through to commissioning. The significant level of standardization allows this high-quality, high-performance system to be offered at particularly attractive prices. The vertical design of the system gives it a very small footprint. This makes the Oxi.X DF enclosed ground flare the ideal system for retrofitting where limited space is available.
