Challenging dimensions

Apr 7, 2021

Dürr hands over new mega paint shop to SAIC Volkswagen

Acting as general contractor, Dürr built one of the biggest paint shops in China for the SAIC Volkswagen joint venture. The handover took place right on schedule despite all the restrictions caused by the coronavirus pandemic. The new plant in Anting is a factory of superlatives. The production capacity is twice that of a standard paint shop at 120 bodies per hour, and behind the intelligent production is software and artificial intelligence on a hitherto unknown scale.

In the new production facility, both ICE and electric cars are to be painted on one line each to start with. What is special is that both painting lines are designed so that a switchover to exclusively electric vehicles is possible in the future.

Dry overspray separation EcoDryScrubber: The sustainable process uses finely ground limestone powder to separate paint overspray.

Further Links

Hagen Rebmann was responsible for the major contract in Anting as Dürr's project manager. He oversaw everything – deadlines, costs, and responsibilities – from the Dürr headquarters in Bietigheim. He received crucial support from a project team on site that was responsible for installing the plant and managed the commissioning. One of the biggest challenges during the assembly was the shortage of storage space in and around the building. All the components had to be delivered just in time; a major logistical effort. For about three months, up to 100 trucks per week arrived at the site. The employees at Dürr’s Shanghai-Qingpu site also found their hands full once the contract was awarded. They manufactured many components of the paint shop itself, including nine Oxi.X TR air pollution control systems as well as the entire painting booth housing.

120
bodies per hour

285
tablets for maintenance and quality auditing of bodies

481
control cabinets

80km
of painting lines

Contract scope

→ RoDip^® M
→ Ecopaint WetSystem
→ Ecopaint Oven
→ Ecopaint Booth
→ EcoDryScrubber
→ Paint supply
→ PVC supply
→ Oxi.X TR
→ Sorpt.X CD
→ DXQcontrol
→ DXQequipment.analytics
→ DXQplant.analytics
→ DXQmaintenance.analytics

Rotational dip coating RoDip® M: The mechanically driven dip coating uses an efficient chain drive on both sides.

The scope of work comprised all of the plant technology, including the RoDip^® dip coating system, painting booths with EcoDryScrubber dry separation, and ovens. Right from the beginning, mechanical engineering and IT expertise went hand in hand. Digital solutions were developed in parallel with planning and implementing the comprehensive plant engineering. For example, the specialists from the Dürr Digital Factory transformed the paint shop into a smart factory with a series of software products from the DXQ portfolio. The DXQequipment.maintenance and DXQplant.analytics applications will help with maintenance and optimization of the entire plant in the future. SAIC Volkswagen also implemented the entire bandwidth of the DXQcontrol product series. The plan is to use the higher-level control technology in Anting not only in the paint shop but also in the body shop, as well as in the high-bay warehouse, the assembly shop, and the production of battery systems in the future.

A further innovation is the use of mobile apps provided by various DXQ products. For example, employees can manage and filter alarm functions directly at the point of origin in the plant using tablets if the line comes to a stop.

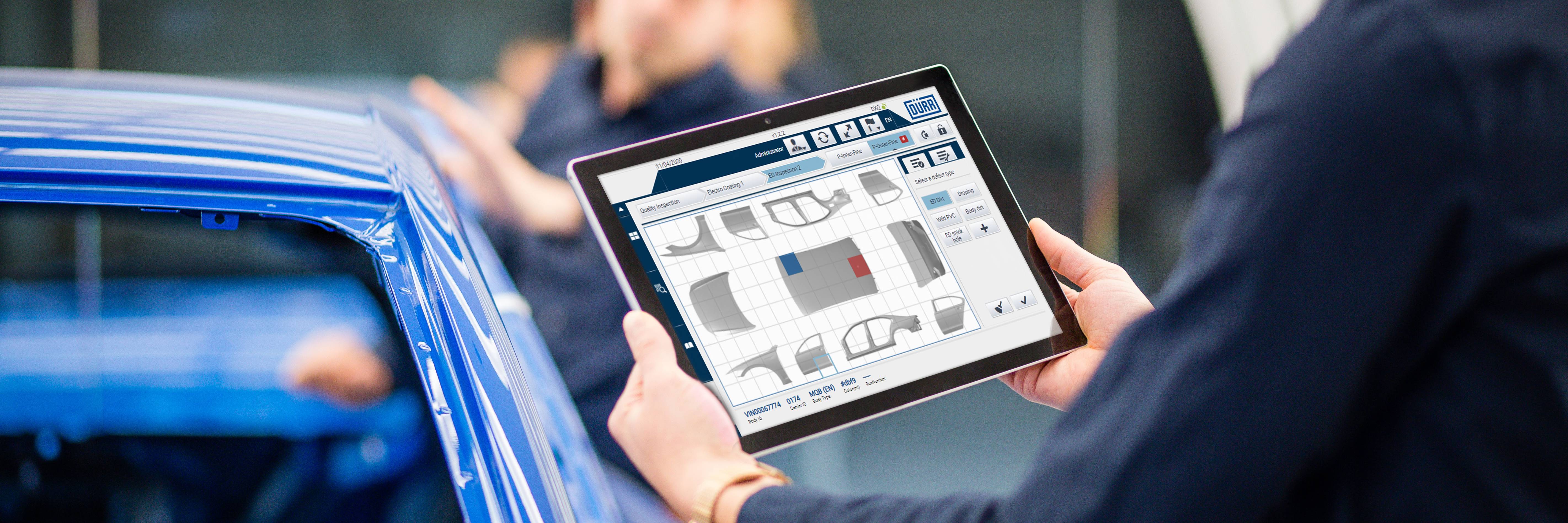

Thanks to Dürr’s mobile apps, employees always have an eye on the plant status. Quality results are recorded digitally via tablets. The analysis software DXQplant.analytics correlates these results with a broad base of data to identify patterns.
